In the quest for a faster, smoother web browsing experience, every millisecond counts. At the heart of Chrome's ability to fetch web content is the network stack, a complex piece of engineering responsible for handling all network requests. As a software engineer on the Google Chrome networking team, I'm excited to share a significant improvement I've made to the core of Chromium's networking: a new Task Scheduler for the Network Service thread, which has demonstrated an improvement of up to 0.3% in loading speed on global key metrics.

Historical Context: From I/O-Bound to CPU-Bound

Historically, Chromium's Network Service thread was designed as a classic event-driven, I/O-bound system. Its main job was to wait for network events (like data arriving on a socket) from the kernel and react to them. Tasks were generally lightweight and processed in a simple First-In, First-Out (FIFO) queue. This model was efficient when the primary bottleneck was the network itself.

However, as the web has grown more complex, the network stack's responsibilities have also expanded. It's no longer just about waiting for data; it now handles more CPU-intensive tasks like parsing complex proxy rules, managing security policies, and handling intricate caching logic. This shift meant that a long-running, CPU-bound task could occupy the thread and prevent it from processing critical, time-sensitive network I/O, creating a bottleneck right where we least wanted one.

The Challenge: A Digital Traffic Jam

The existing FIFO model was a bit like a single-lane road. A CPU-intensive but low-priority background task could get in front and delay a high-priority navigation task. This contention could negatively impact key performance metrics like First Contentful Paint (FCP) and Largest Contentful Paint (LCP), ultimately leading to a slower page load for the user.

Here is a simplified illustration of the "before" state:

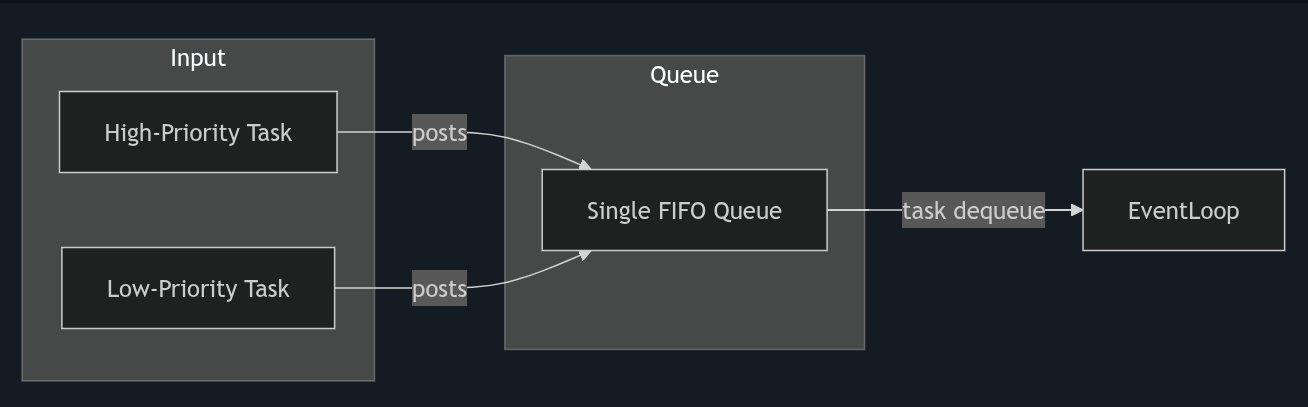

Figure 1: The previous single-queue approach, where all tasks were processed in FIFO order.

Figure1

This diagram illustrates this "single-lane highway." Both high-priority and low-priority tasks are funneled into the same Single FIFO Queue. The MessagePump, which is Chromium's core event loop, simply pulls tasks from this queue in the order they were added. This means a critical navigation task could get stuck waiting for a less important background task to finish.

The Solution: A Multi-Lane Highway for Network Tasks

To address this, I introduced an application-level task scheduler in the Network Service. It's important to note that this scheduler operates on top of the existing event loop. It doesn't change how the kernel notifies us of I/O events, but it gives us fine-grained control over the order in which our application's C++ tasks are executed.

The new scheduler replaces the single-lane road with a multi-lane highway, complete with express lanes for high-priority traffic.

Here is a simplified illustration of the "after" state:

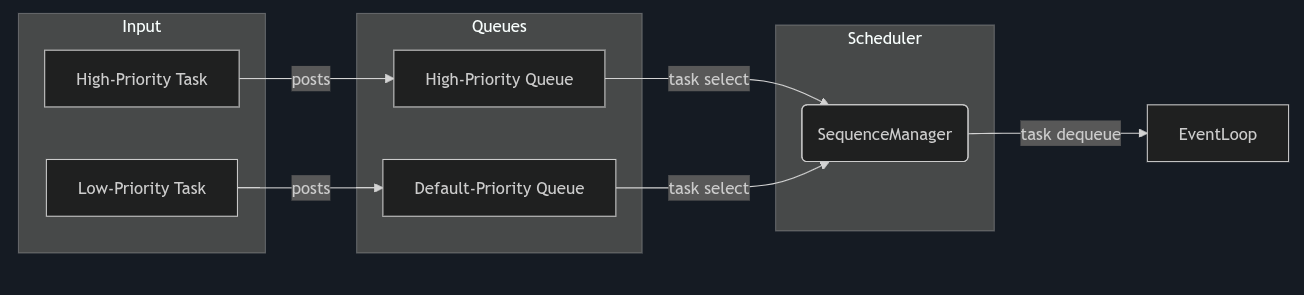

Figure 2: The new scheduler with prioritized queues, allowing critical tasks to be processed first.

Figure2

This diagram shows the new, improved workflow. High-priority tasks are now sent to a dedicated High-Priority Queue, while other tasks go to a separate Default-Priority Queue. The key addition is the SequenceManager, which acts as an intelligent traffic controller. It actively pulls tasks from the available queues, always selecting the next available task from the highest-priority queue. This ensures that critical work can jump to the front of the line and is no longer delayed by less important tasks.

From a Single Queue to Prioritized Lanes

At a technical level, SequenceManager manages task execution on the Network Service thread. My first iteration (v1) of the scheduler introduced two task queues: a HighPriorityTaskQueue for critical tasks and a DefaultTaskQueue for everything else. Tasks are categorized based on their existing net::RequestPriority. For example, tasks associated with a user-initiated navigation are considered HIGHEST priority and are routed to our new express lane.

Building on the success of v1, I've since rolled out v2 of the scheduler, which is even more granular. It features six task queues, one for each net::RequestPriority level (from THROTTLED to HIGHEST). This allows for a much finer-grained control over task prioritization.

A Real-World Example in Action

To make this more concrete, let's look at a real-world trace of the scheduler in action. In this scenario (Perfetto trace), a simple navigation to https://httpbin.org/ occurred.

When the navigation task (an HttpStreamFactoryJob posting an OnStreamReadyCallback) was posted with HIGHEST priority (Figure 3), the default queue already had 13 pending tasks (Figure 4). In a traditional First-In, First-Out (FIFO) system, this critical navigation task would normally have to wait for those 13 tasks to complete.

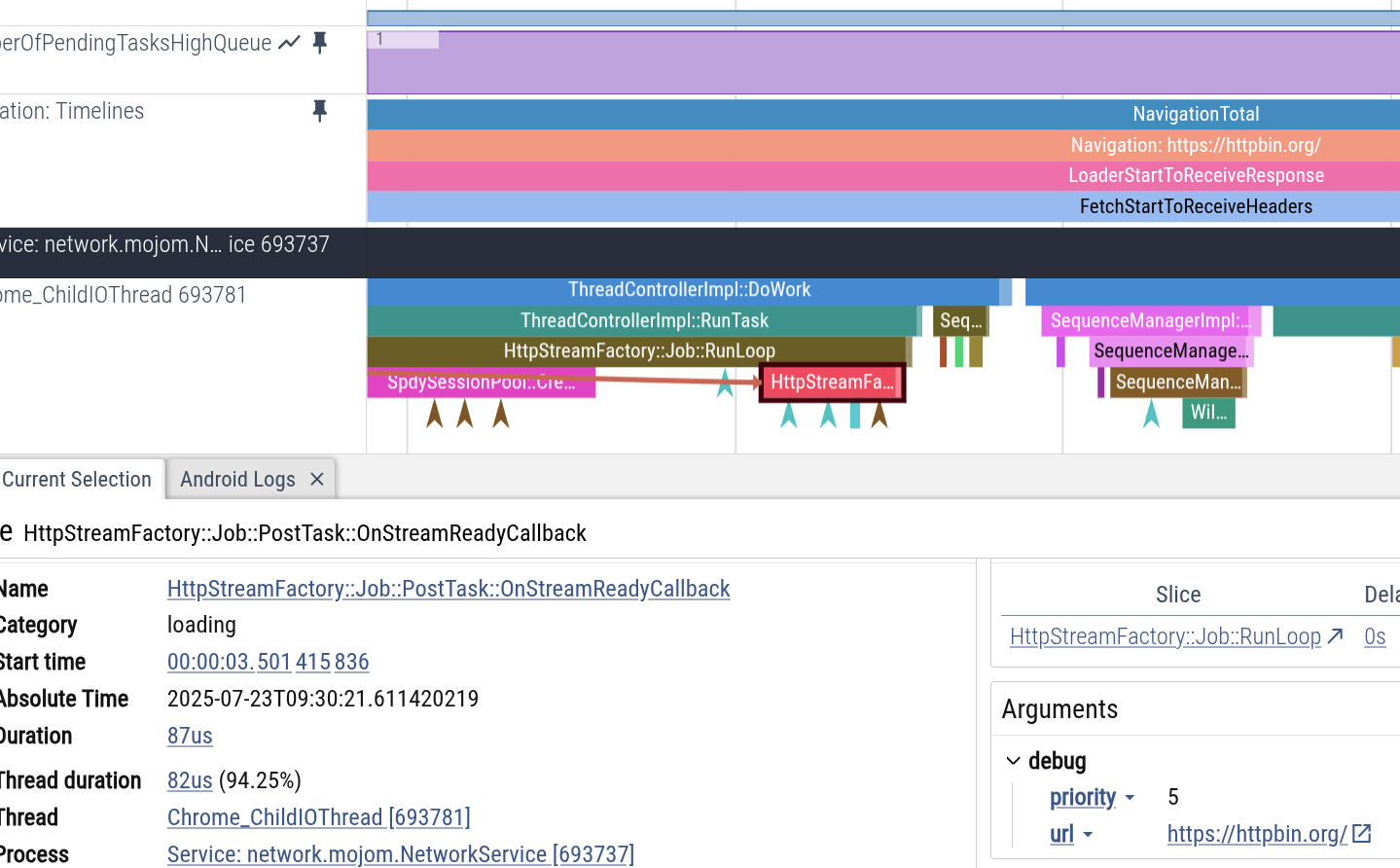

Figure 3: [00:00:03.501415836] HttpStreamFactoryJob posts a task for OnStreamReadyCallback with the highest priority using a high-priority task runner.

Figure3

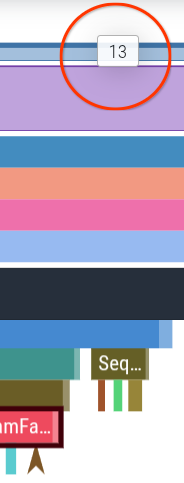

Figure 4: The number of tasks in the default queue.

Figure4

However, with the new Task Scheduler, the SequenceManager immediately recognized the high-priority task. It processed this newly posted task without delay, taking precedence over the tasks in the default-priority queue (as depicted in Figure 5). This bypassing demonstrates how the scheduler ensures critical user-facing work is not blocked by less important background operations, leading to a more responsive browsing experience.

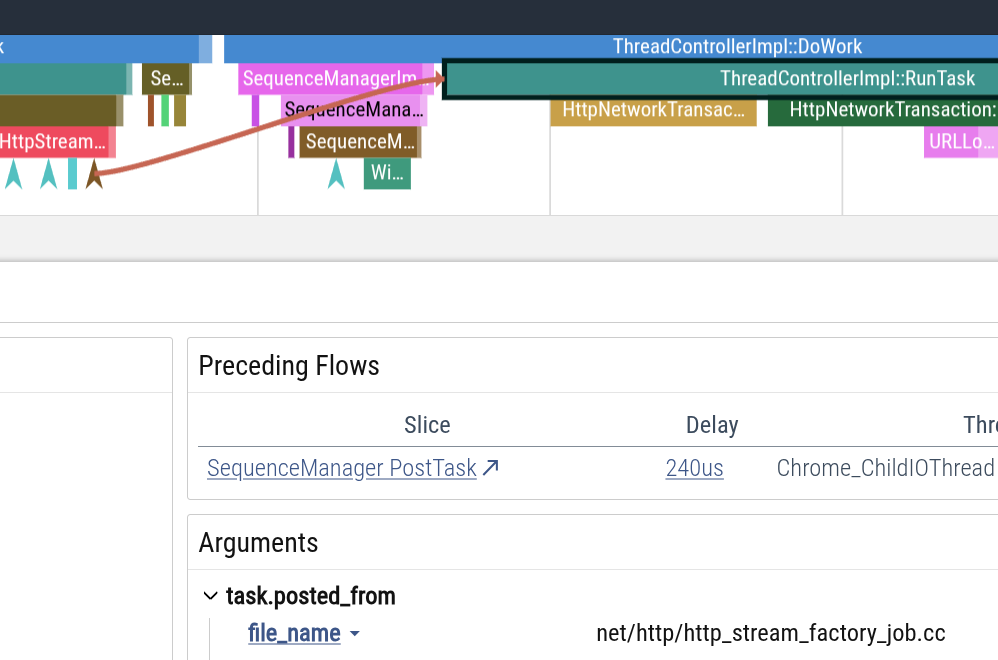

Figure 5: [00:00:03.501727836] The high-priority task is processed immediately, taking precedence over the tasks in the default-priority queue.

Figure5

The Journey: Timeline, Challenges, and Triumphs

Introducing such a fundamental change to a mature and complex codebase like Chromium's network stack was a significant undertaking.

The Challenges

One of the biggest risks was the potential for task reordering to break subtle assumptions in the existing code, leading to stability issues like race conditions or use-after-free bugs. To mitigate this, I took a phased and data-driven approach. I started with a conservative implementation, focusing on a small, well-understood set of critical tasks. I then carefully expanded the scope of the scheduler, continuously monitoring for any regressions. This meticulous approach, which I documented as "No Mechanical Rewrites" in the design doc, allowed me to reap the performance benefits without compromising Chrome's stability.

Another interesting challenge was handling the different ways the Network Service is run on different platforms. On most desktop platforms, the Network Service runs in its own dedicated process (out-of-process). However, on some Android devices, particularly low-end ones, it runs within the main browser process (in-process) to save memory. This required careful handling to ensure the scheduler worked flawlessly in both scenarios: its dedicated out-of-process configuration (standard on desktop) and the in-process, memory-saving configuration for some Android devices.

The Timeline

  • Weeks 1-3: Design and Prototyping. I started by creating a detailed design document, outlining the problem, proposed solution, and potential risks. This was followed by a proof-of-concept to validate the approach.
  • Weeks 4-9: Integration and Testing. The next phase involved carefully integrating the new scheduler with the existing network stack. This was the most extensive part of the work, requiring me to modify numerous task posting sites in //net and //services/network. During this phase, I also added comprehensive unit tests and diagnostic metrics to monitor the scheduler's behavior.
  • Week 10 onwards: Finch Experiments and Rollout. With the implementation in place, I began a series of Finch experiments on Chrome's Canary, Dev, Beta, and Stable channels to measure the real-world impact of the new scheduler.

The Impact: Measurable Performance Gains

I rigorously tested the new task scheduler through a series of Finch experiments. The results have been very promising. With the v1 scheduler, I observed:

  • Up to 0.3% improvement in Global First Contentful Paint (FCP) and Largest Contentful Paint (LCP) on Android. (FCP measures the time it takes for the first piece of content to appear on screen, and LCP measures when the main content of a page has loaded.)

These seemingly small percentages translate to a noticeably faster and smoother browsing experience for millions of users, especially on devices with limited resources or on congested networks.

What's Next?

The rollout of our v2 per-priority task queues is ongoing, and I'm continuing to monitor its impact. I'm also exploring other opportunities to improve task scheduling in the network service, such as dynamically changing task priorities and allowing tasks to yield to higher-priority ones.

I'm excited about the improvements the new task scheduler brings to Chrome's performance, and I'll continue to work on making the web a faster place for everyone.
